Intraorálny skener K-SCAN

I. Product information：
The K Scan consists of an the intraoral scanner
and the supporting software (installed on a
notebook).
1. Design
Lightweight and portable design, easy to install,
easy to use
2. Software

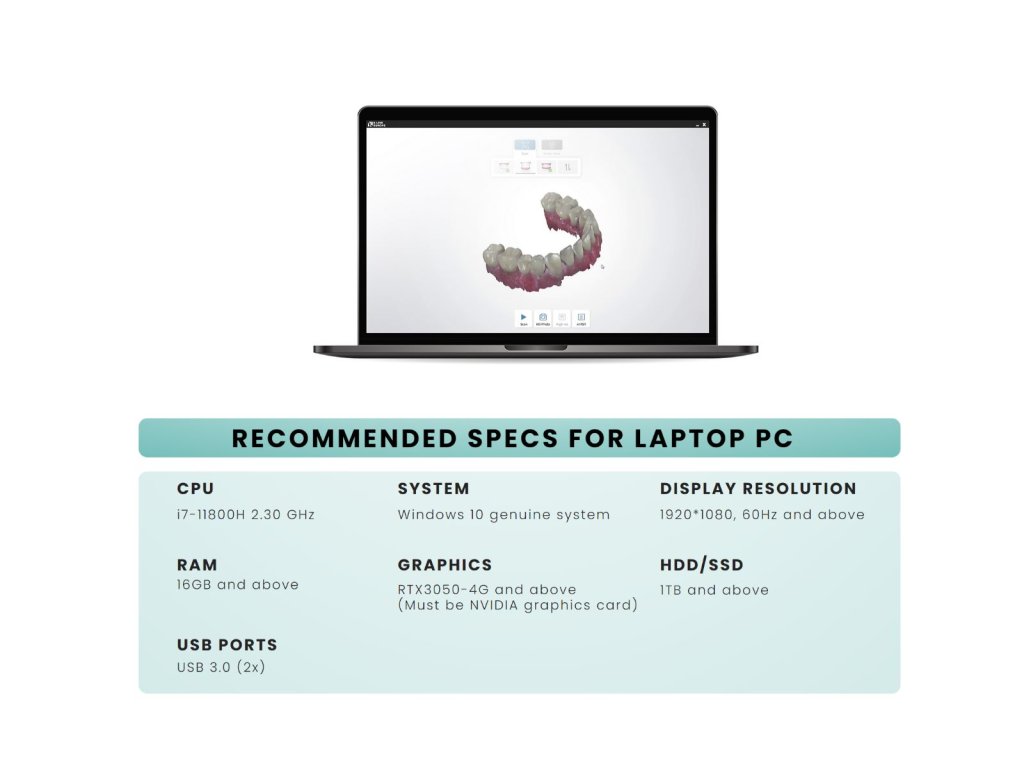

Installed in a Notebook (supported by Nvidia
Graphic cards and Windows system)

II. Product specifications：
1. Small size and lightweight
- Scanner size: 240mm (length) × 39.8mm (width) × 57mm (height)
- Scanning head size: 18.5mm (height) × 19mm (width)
- Weight: 350g
- Applicable to patients with different opening degrees
2. Scan head detachable to support multi-mode disinfection
Scanning head can be autoclaved and immersed to avoid cross
infection

3. No powder scanning
- Reduces the difficulty and complexity of clinical operations
- Improves patient comfort
4. Color scanning
- True color imaging reflects the actual situation of the patient's
mouth
- Easy to distinguish between soft and hard tissue
- Facilitates easy communication between doctors and patients
5. High scanning accuracy and speed
- Scanning with up to 25μm - for all clinical needs
- Saving time compared to traditional impressions
- Full port scanning time: ≤ 5 minutes

6. Continuous scanning
- Reduces clinical operation time and increase efficiency
- Real-time display of scanned images, so doctors can diagnose and
analyze live
7. Accurate depth of field
- Large depth of field of 15mm to ensure completeness of images
8. Built-in anti-fog function
- The anti-fog function is built in the scanning head, and the lens is
automatically heated to prevent fogging in the mouth.
- Provides guarantees for the completeness of data collected at one
time

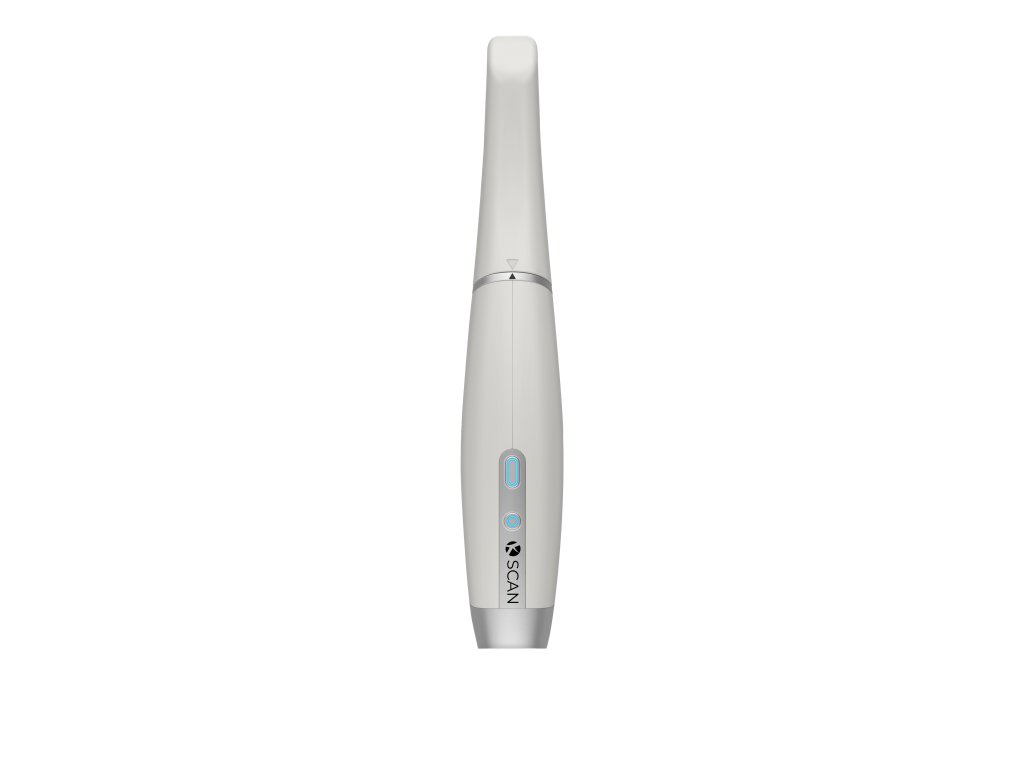

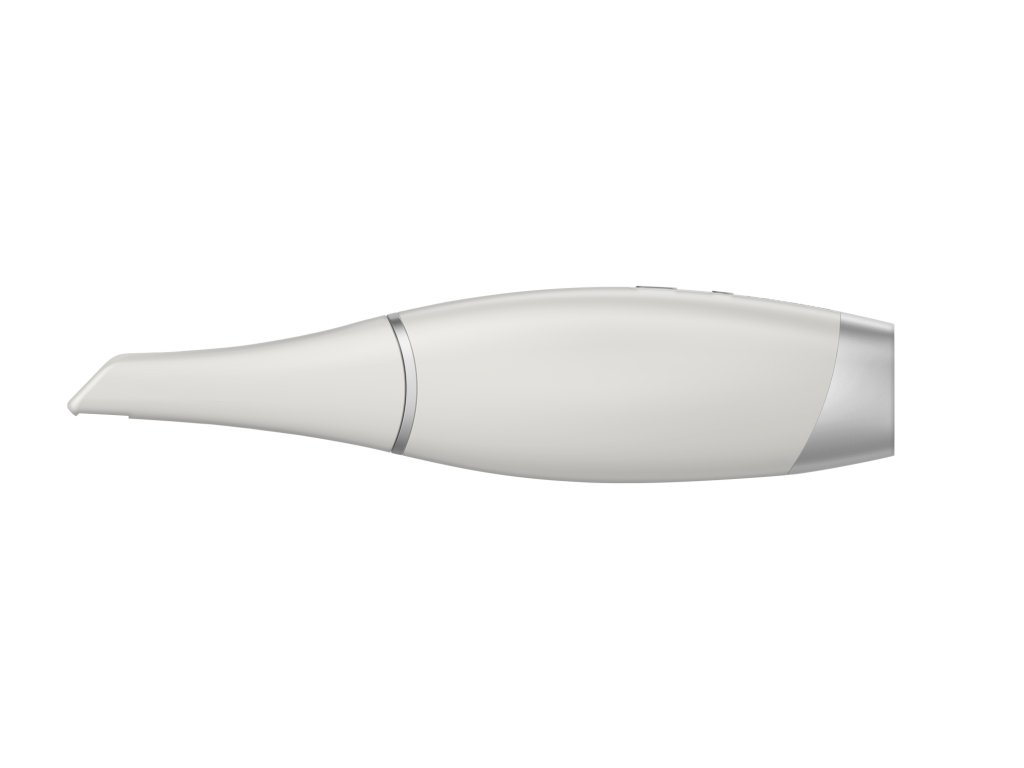

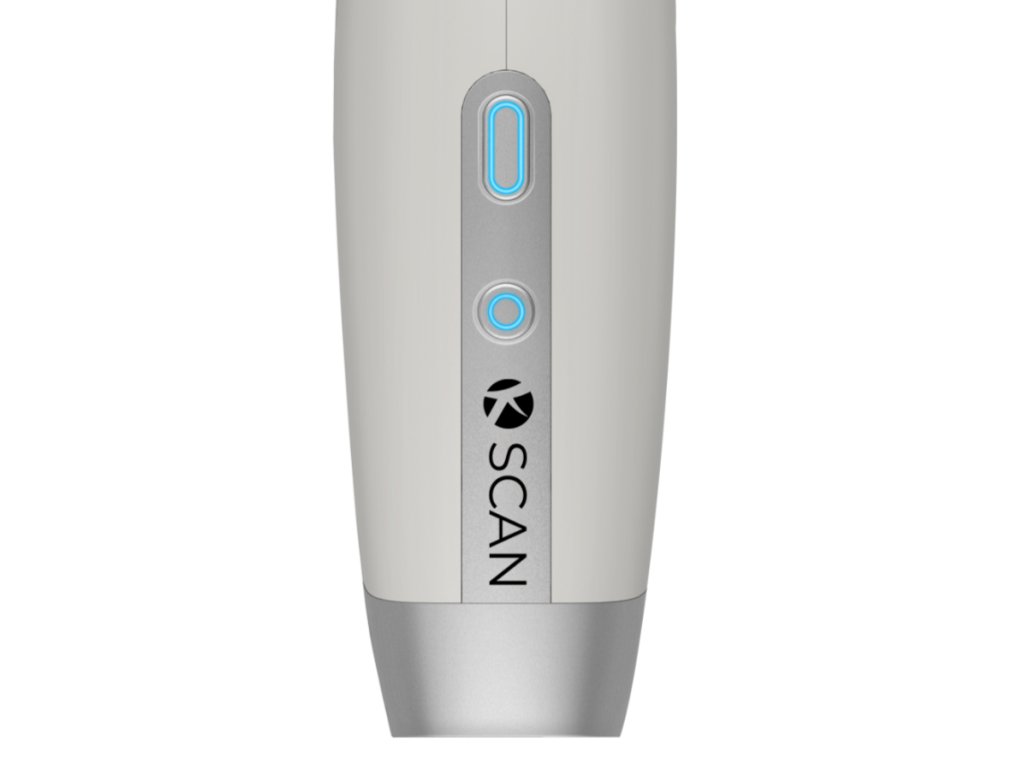

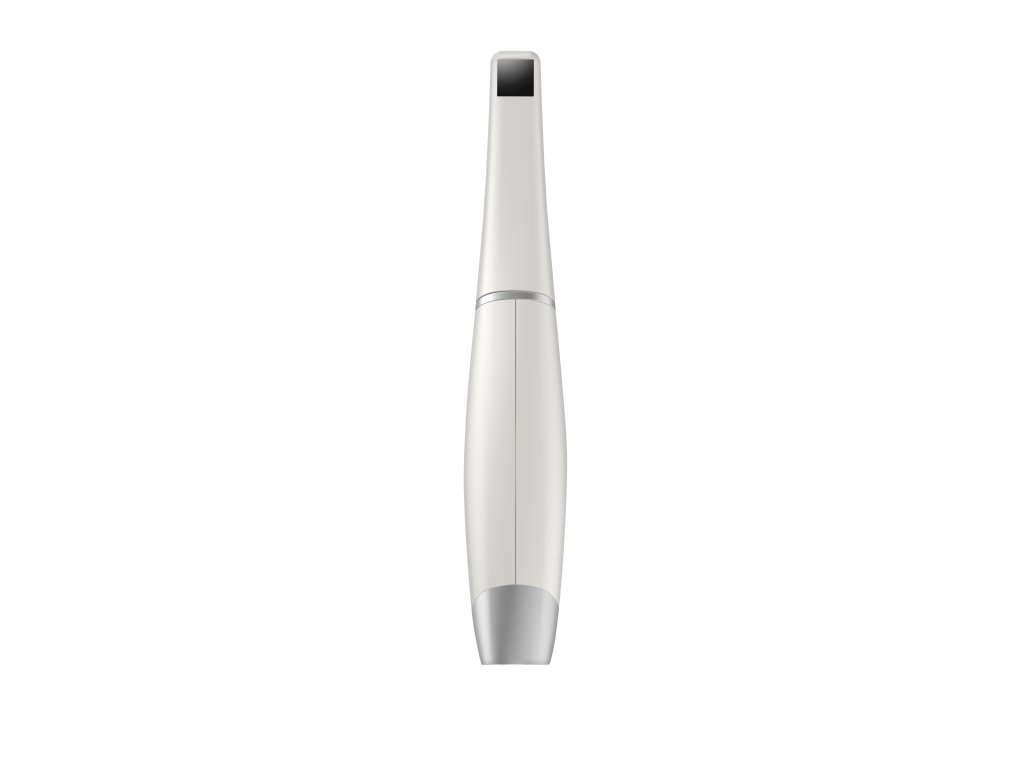

9. Pen Design
- Pen-holding design
- Streamlined design for a more comfortable grip
- Ergonomic design
10. Data format is open
- Unencrypted STL format
- Compatible with most CAD design software
- Data can be transferred to the machining center via the built-in cloud
service or by alternative means
11. Wide range of clinical applications
- Can be applied to most oral restorations, oral implants, orthodontics, etc.
